High-performance .NET by example:

Filtering bot traffic

NET Meetup #22 Minsk 2017

by Alexandr Nikitin

About me:

Software Engineer @Adform

@nikitin_a_a

https://github.com/alexandrnikitin/

https://alexandrnikitin.github.io/blog/

Overview

• Domain
• Measure, measure, measure!
• Algorithm
• Tools
• Performance optimizations

All websites receive bot traffic!

Sources:

Incapsula

Solve Media

The bot classification

• White bots (good) - search engine bots like Google, Bing or DuckDuckGo.
• Grey bots (neutral) - feed fetchers, website crawlers and data scrappers.
• Black bots (harmful) - fraud and criminal activity, intentional impersonation for profit.

Ways to identify:

• Technical info
• Behavior analysis
• Honeypots

The Interactive Advertising Bureau (IAB)

• advertising business organization
• develops industry standards


• Do Not Track and Internet Explorer
• 3rd party cookies in Firefox
• Adblock Plus and IAB summit

IAB International Spiders and Bots List

Pricing:
IAB General Member: $4 000
IAB Associate Member: $7 000
Non-Member: $14 000


Simplified content

googlebot
bingbot
twitterbot
duckduckbot
curl


Measure, measure, measure!

“If you can not measure it, you can not improve it.”

Lord Kelvin

Microbenchmarking DOs DON’Ts from Microsoft:

Development pipeline:

Variety of implementations:

Algorithm

Multiple string/ pattern matching problem

• anti-virus software
• network security
• biology and DNA
• spam detection
• plagiarism detection

String searching algorithms:

• Naive
• Finite-state machine
• Aho–Corasick
• Boyer-Moore & Commentz-Walter
• Backward Oracle Matching & Set-BOM
• Rabin–Karp

Key features of the Aho–Corasick algorithm:

• by Alfred Aho and Margaret Corasick in 1975
• a pattern matching algorithm
• accepts a finite set of patterns
• matches all patterns simultaneously
• backed by a Trie
• “failure” links between nodes

An animated version

http://blog.ivank.net/aho-corasick-algorithm-in-as3.html

Tools

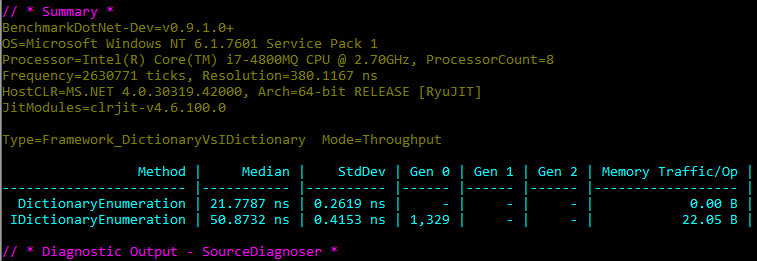

BenchmarkDotNet

Alternatives: xunit.performance, NBench

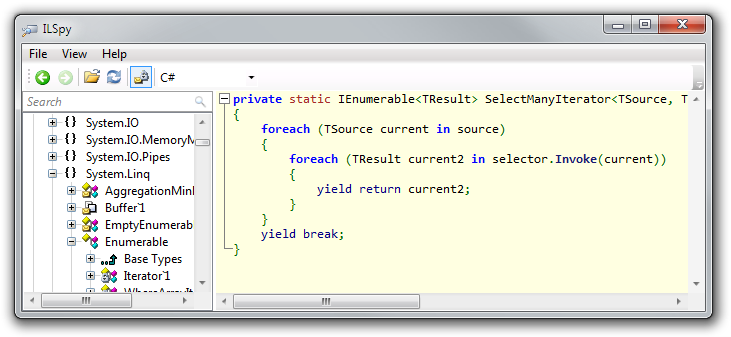

ILSpy

Alternatives: ildasm, dotPeek, Just Decompile, dnSpy

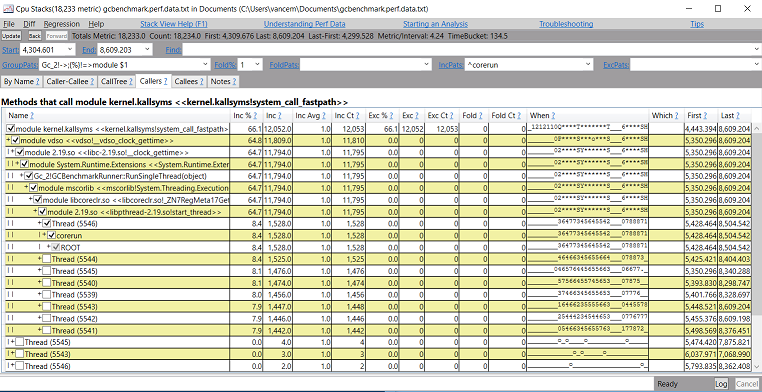

PerfView

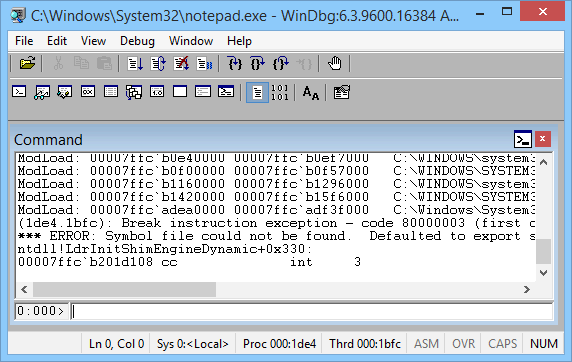

WinDbg

“Debugging .NET with WinDbg” by Sebastian Solnica

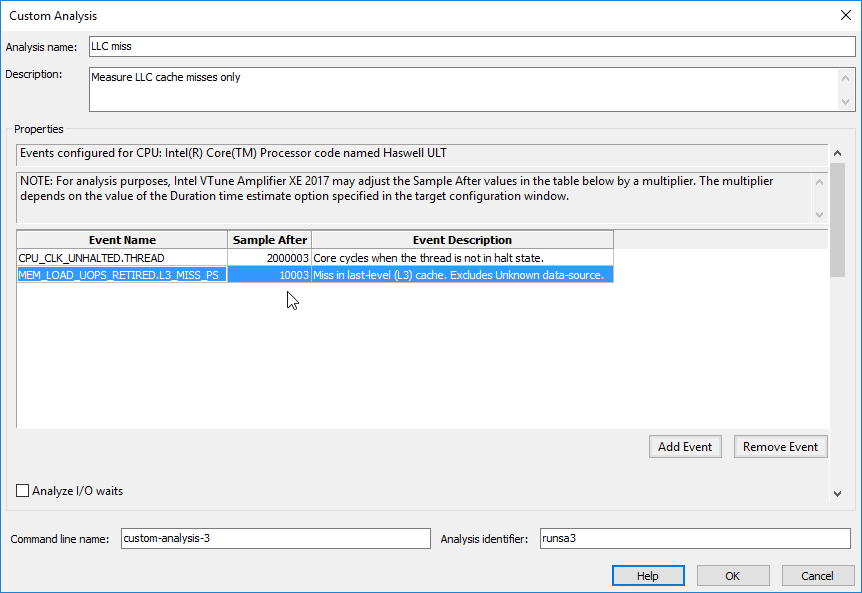

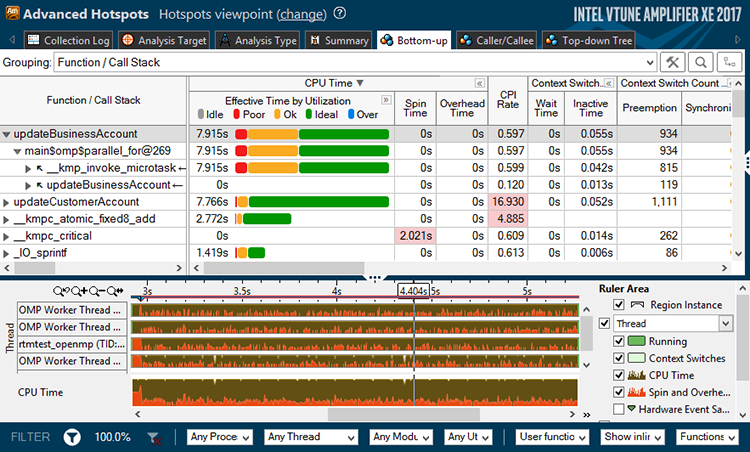

Intel VTune Amplifier

Performance optimizations

The code

public class AhoCorasickTree
{
    internal AhoCorasickTreeNode Root { get; set; }
    public AhoCorasickTree(IEnumerable<string> keywords) { ... }
    public bool Contains(string text) { ... }
}


internal class AhoCorasickTreeNode
{
    public char Value { get; private set; }
    public AhoCorasickTreeNode Failure { get; set; }

    private readonly Dictionary<char, AhoCorasickTreeNode> _transitionsDictionary;
}


public bool Contains(string text) { return Contains(text, false); }

private bool Contains(string text, bool onlyStarts)
{
    var pointer = Root;
    foreach (var c in text)
    {
        var transition = GetTransition(c, ref pointer);
        if (transition != null)
            pointer = transition;
        else if (onlyStarts)
            return false;
        if (pointer.Results.Any())
            return true;
    }
    return false;
}


private AhoCorasickTreeNode GetTransition(char c, ref AhoCorasickTreeNode pointer)
{
    AhoCorasickTreeNode transition = null;
    while (transition == null)
    {
        transition = pointer.GetTransition(c);

        if (pointer == Root)
            break;

        if (transition == null)
            pointer = pointer.Failure;
    }
    return transition;
}


public AhoCorasickTreeNode GetTransition(char c)
{
    return _transitionsDictionary.ContainsKey(c)
               ? _transitionsDictionary[c]
               : null;
}


public class SimpleManyKeywordsBenchmark
{
    // a common user agent string
    private const string UserAgent = "Mozilla/5.0 (Windows NT 6.1) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/41.0.2228.0 Safari/537.36";

    // create the SUT
    private readonly AhoCorasickTree _tree;
    public SimpleManyKeywordsBenchmark()
    {
        _tree = new AhoCorasickTree(ResourcesUtils.GetKeywords().ToArray());
    }

    [Benchmark]
    public bool Baseline()
    {
        return _tree.Contains(UserAgent);
    }
}


``` ini
BenchmarkDotNet=v0.10.3.0, OS=Microsoft Windows NT 6.2.9200.0
Processor=Intel(R) Core(TM) i7-4600U CPU 2.10GHz, ProcessorCount=4
Frequency=2630635 Hz, Resolution=380.1364 ns, Timer=TSC
  [Host]     : Clr 4.0.30319.42000, 64bit RyuJIT-v4.6.1637.0
  Job-ECROUK : Clr 4.0.30319.42000, 64bit RyuJIT-v4.6.1637.0

Jit=RyuJit  Platform=X64  LaunchCount=5
TargetCount=20  WarmupCount=20
```



|  Method  |      Mean |    StdDev |
|--------- |---------- |---------- |
| Baseline | 6.1364 us | 0.0314 us |


Chapter 1: APIs of Libraries

public AhoCorasickTreeNode GetTransition(char c)
{
    return _transitionsDictionary.ContainsKey(c)
               ? _transitionsDictionary[c]
               : null;


public AhoCorasickTreeNode GetTransition(char c)
{
    _transitionsDictionary.TryGetValue(c, out AhoCorasickTreeNode node);
    return node;
}


Chapter 2: CLR internals

public static bool Any<TSource>(this IEnumerable<TSource> source)
{
  ...
  using (IEnumerator<TSource> enumerator = source.GetEnumerator())
  {
    if (enumerator.MoveNext())
      return true;
  }
  return false;
}

public class List<T> : ... IEnumerable<T> ...
{
  ...
    IEnumerator<T> IEnumerable<T>.GetEnumerator()
    {
      return (IEnumerator<T>) new List<T>.Enumerator(this);
    }
}


...
IL_0000: ldarg.0
IL_0001: newobj instance void valuetype System.Collections.Generic.List`1/Enumerator<!T>::.ctor(class System.Collections.Generic.List`1<!0>)
IL_0006: box valuetype System.Collections.Generic.List`1/Enumerator<!T>
IL_000b: ret


if (pointer.Results.Any())
	return true;


if (pointer.Results.Count > 0)
	return true;


|    Method |      Mean |    StdDev |    Median | Scaled | Scaled-StdDev |
|---------- |---------- |---------- |---------- |------- |-------------- |
|   Control | 5.7016 us | 0.0669 us | 5.6759 us |   1.00 |          0.00 |
| Treatment | 2.8440 us | 0.0357 us | 2.8433 us |   0.50 |          0.01 |


Chapter 3: BCL Data Structures

private int FindEntry(TKey key)
{
  if ((object) key == null) ThrowHelper.ThrowArgumentNullException(ExceptionArgument.key);
  if (this.buckets != null)
  {
    int num = this.comparer.GetHashCode(key) & int.MaxValue;
    for (int index = this.buckets[num % this.buckets.Length]; index >= 0; index = this.entries[index].next)
    {
      if (this.entries[index].hashCode == num && this.comparer.Equals(this.entries[index].key, key))
        return index;
    }
  }
  return -1;
}


Dictionary<TKey, TValue>.TryGetValue()
  Dictionary<TKey, TValue>.FindEntry()
    GenericEqualityComparer<T>.GetHashCode()
      Char.GetHashCode() (inlined)
    GenericEqualityComparer<TKey>.Equals()
      Char.Equals() (inlined)
    // repeat if hash collision


internal class AhoCorasickTreeNode
{
  private int[] _buckets;
  private Entry[] _entries;
  ...

  public AhoCorasickTreeNode GetTransition(char c)
  {
      var bucket = c % _buckets.Length;
      for (int i = _buckets[bucket]; i >= 0; i = _entries[i].Next)
      {
          if (_entries[i].Key == c)
          {
              return _entries[i].Value;
          }
      }

      return null;
  }

  ...
}


|    Method |      Mean |    StdDev | Scaled | Scaled-StdDev |
|---------- |---------- |---------- |------- |-------------- |
|   Control | 2.7514 us | 0.0249 us |   1.00 |          0.00 |
| Treatment | 1.7416 us | 0.0216 us |   0.63 |          0.01 |

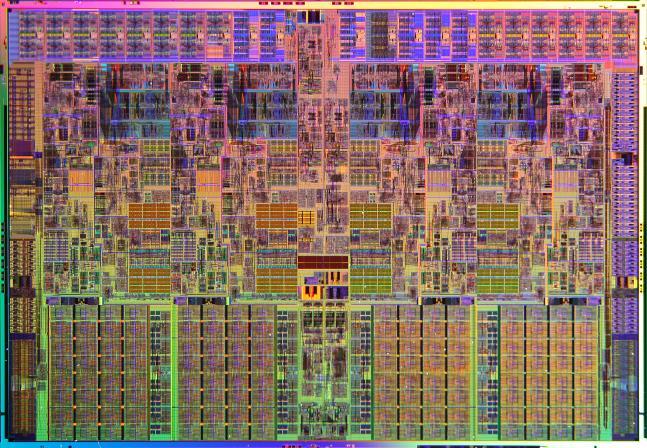

How CPU works

Caches:
Cache line = 64 bytes
L1 Data cache = 32 KB
L1 Instruction cache = 32 KB
L2 cache = 256 KB
L3 cache = 8 MB

Latency:
L1 Data Cache Latency = 4 cycles for simple access via pointer
L1 Data Cache Latency = 5 cycles for access with complex address calculation
L2 Cache Latency = 12 cycles
L3 Cache Latency = 36 cycles
RAM Latency = 36 cycles + 57 ns


Source

Front-end:

• works with instructions
• fetch & decode

Back-end:

• performs execution

Chapter 4: Advanced data structures

Open addressing

hash collision is resolved by probing

Linear, Quadratic, Double hashing

is not a silver bullet

|    Method |          Mean |     StdDev |        Median | Scaled | Scaled-StdDev |
|---------- |-------------- |----------- |-------------- |------- |-------------- |
|   Control | 1,732.3850 ns | 22.5726 ns | 1,726.0844 ns |   1.00 |          0.00 |
| Treatment |   723.2748 ns |  6.9478 ns |   722.9084 ns |   0.42 |          0.01 |

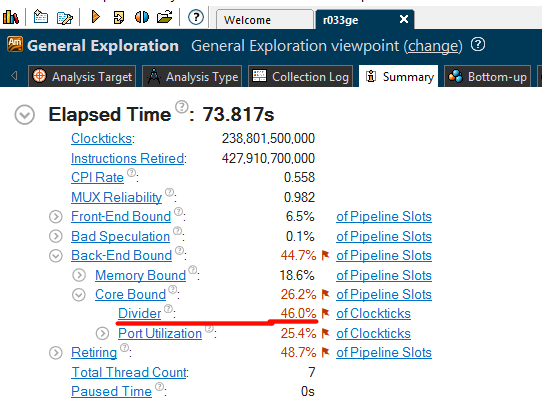

Chapter 5: Hacks

public AhoCorasickTreeNode GetTransition(char c)
{
    if (_size == 0) return null;
=>  var ind = c % _size;
    var keyThere = _entries[ind].Key;
...
}


...
; r8d has _size
movzx r9d, dx ; char argument to r9d
mov eax, r9d ; r9d to eax
cdq ; clear edx
idiv r8d ; divide eax by r8d (_size); quotient in ax, remainder in dx
mov eax, edx ; result to eax
...


public AhoCorasickTreeNode GetTransition(char c)
{
    if (_size == 0) return null;
    var ind = c & (_size - 1); // _size needs to be a power of 2
    var keyThere = _entries[ind].Key;
...
}

|    Method |        Mean |    StdDev | Scaled | Scaled-StdDev |
|---------- |------------ |---------- |------- |-------------- |
|   Control | 757.1089 ns | 8.5518 ns |   1.00 |          0.00 |
| Treatment | 427.0176 ns | 6.4534 ns |   0.56 |          0.01 |


Chapter 6: A HUGE mistake

Sidenote: String traversal

for (var i = 0; i < userAgent.Length; i++)
{
    var c = userAgent[i];
    ...
}


...
; Block 2:
movsxd r8, eax
movzx r8d, word ptr [rcx+r8*2+0xc]
inc eax
cmp edx, eax
jnle 0x7ffdeecd3d39 ; Block 2
...


fixed (char* p = userAgent)
{
    var len = userAgent.Length * 2;
    var cptr = p;
    while (len > 0)
    {
        var c = *cptr;
        cptr++;
        len -= 2;
        ...
    }
}


...
; Block 4:
movzx ecx, word ptr [rax]
add rax, 0x2
add edx, 0xfffffffe
test edx, edx
jnle 0x7ffdeecd3d83 ; Block 4
...


|          Method |        Mean |    StdDev |      Median | Scaled | Scaled-StdDev |
|---------------- |------------ |---------- |------------ |------- |-------------- |
|        Traverse | 132.5022 ns | 0.9385 ns | 132.1233 ns |   1.00 |          0.00 |
|  TraverseUnsafe |  70.7301 ns | 0.1986 ns |  70.6969 ns |   0.53 |          0.00 |


Unmanaged scalepans

• Bound checks
• String traversal
• Compressed relative pointers
• Pointer reuse

[
  Node1: [Size, FailureIndex, [Key1, NodeIndex1; KeyN, NodeIndexN;]];
  NodeN: ...
]

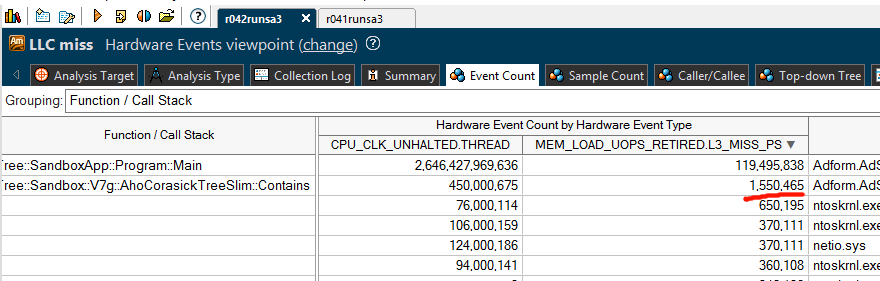

How to measure?

private static readonly byte[] Data = new byte[16 * 1024 * 1024];

for (var i = 0; i < 1000000; i++)
{
    // clear the CPU caches
    var sum = 0;
    for (var j = 0; j < Data.Length; j++)
    {
        sum += Data[j];
    }

    // the code we profile
    tree.Contains(UserAgent);
}


Summary

• Improved performance by 20-30? times
• API usage
• CLR internals
• re-implementing Dictionary
• Open addressing Hash table
• modulo bit hack
• Made a mistake
• CPU-friendly implementation

What's next?

• Compacting the data structure
• Perfect hash
• ASCII -> bit masks
• SIMD (Single instruction, multiple data)

Как жить дальше?
